Impinj R2000 Handheld Barcode Scanner , UHF RFID Card Reader RS232 / USB Interface
Product Applications
1.Logistics& warehouse management
2.Intelligent parking management
3.Production line management
4.Product counterfeit inspection
5.Other fields: Library management, school management, asset management, access control, etc.
General Description

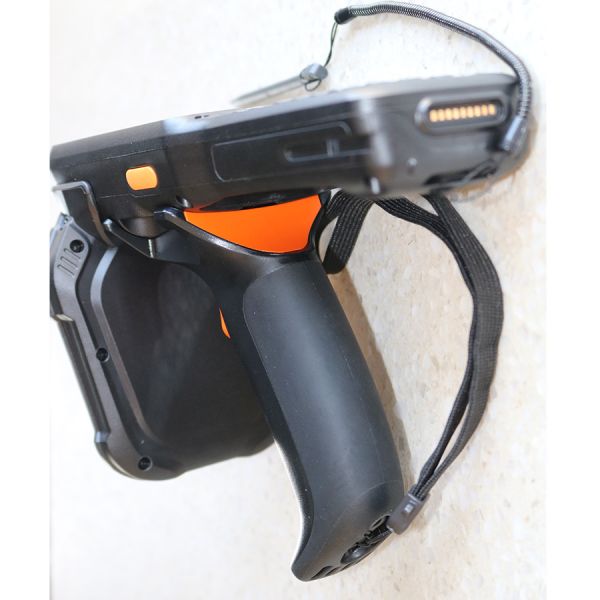

ZK_RFID915 is a UHF Handheld RFID Card Reader of the 5th generation product developed by our company. It can read/write the electronic labels on the tags, which complies with UHF EPC Gen2 (ISO18000-6C).
This handheld reader can be widely applied to data collection systems, such as Vehicle Access Control Management, Personnel Access Control Management,Logistics Supervise, Auto-production Management, etc.
Features
| Model | ZK-RFID915 |
| Ergonomic design | maximum size: 190mm*75mm*30mm Handle: 90mm*60mm*25mm |
| Weight | 350g(with batteries) |
| Hard keyboard | alphanumeric keyboard |
| Soft keyboard | English, Pinyin, and Chinese handwriting |
| Operating System | Microsoft Windows CE 6.0 OS (Multi-lingual) |
| CPU | SamSung Cortex-A8 1GHz CPU |
| Screen | 3.5 inch VGA (480 * 640) color touch screen |
| Memory | ROM | 4GB |
| RAM | 512MB |
| One dimension-al laser | Scanning speed | 100±20 per second (bidirectional) |
| Readable bar codes | Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded |
| | |
| WCDMA | Work frequency Band | UMTS2100/900 MHz
UMTS1900/850 MHz
GSM850/900/1800/1900 MHz |
| Data service | GSM CS: UL 9.6kbps/DL 9.6kbps
GPRS/EDGE: Multi-slot Class 12, Class B
WCDMA CS: UL 64kbps/DL 64kbps
WCDMA PS: UL 384kbps/DL 384kbps
HSDPA:DL 3.6Mbps
|
