GPIO Interface UHF USB RFID Reader High Perfomance Effective Range 10 ~ 300 CM

Product Categories
ShenZhen ZKHY RFID Technology Co., Ltd.
Contact Now

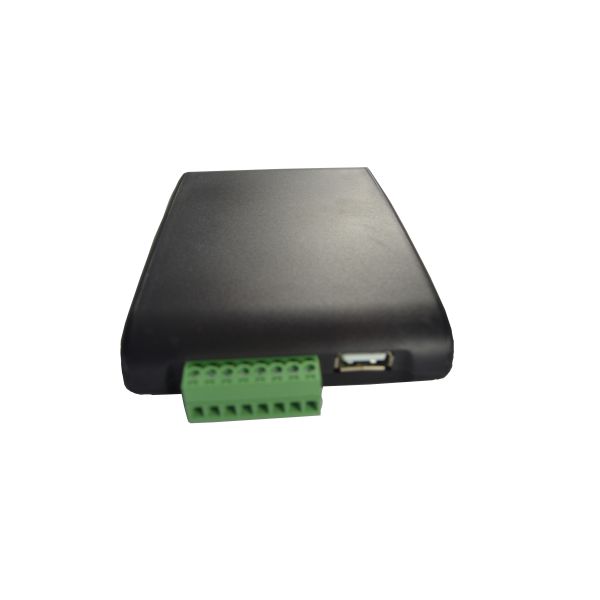

GPIO Interface UHF USB RFID Reader High Perfomance Effective Range 10 ~ 300 CM

  • 1
  • 2

Brand Name : ZKHY

Model Number : ZK-RFID9816

Certification : CE Rohs FCC

Place of Origin : China （mainland）

MOQ : 1

Payment Terms : Western Union, T/T，Paypal

Delivery Time : 5-8days

Packaging Details : Carton packing

Material : Plastic

Protocol : EPC Class 1 Gen 2 （ISO16000-6C)/ISO16000-6B

Frequency : 865-868MHz, 902-928MHz

Interface : USB (VSP mode), RS232, Wiegand (optional) and USB HID (keyboard emulation)

Effect range : 10-300cm

Power supply : 6v /12v

RF power : 26dbm

Size : 122.4*84*20

Contact Now

GPIO interface high perfomance 902-928Mhz UHF rfid desktop rfid reader/writer

GENERAL DESCRIPTION

ZK-RFID9816 desktop uhf rfid reader/writer is a high performance UHF Desktop reader. It is designed upon dedicated RFID Engine ASIC with fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

  • Self-intellectual property;
  • Support ISO18000-6C(EPC C1G2) protocol tag;
  • 865~868MHz or 902~928MHz frequency band(frequency customization optional);
  • FHSS or Fix Frequency transmission;
  • Effective range from 10~300cm (adjustable according to real application need);
  • Multiple tag anti-collision>50pcs/s;
  • Multiple tag inventory speed>50pcs/s;
  • Tag buffer size: 370PCS@Max.128bitsEPC or 120PCS@Max.496bitsEPC;
  • Low power dissipation with USB power source or external single +9 DC power supply;
  • Support RSSI;
  • Support 2 GPIO;
  • Support USB (VSP mode), RS232, Wiegand (optional) and USB HID (keyboard emulation)
  • High reliability design without extra heat-sinking measure;
  • Support on-the-site firmware upgrading.

INTERFACE

  1. Socket Definition
No. Symbol Comment
1 VCC External +9V power supply
2 GND Ground
3 TXD RS-232 serial data output
4 RXD RS-232 serial data input
5 GND Ground
6 GPIO1 GPIO1 or Wiegand Data 0
7 GPIO2 GPIO2 or Wiegand Data 1
8 GND Ground

  1. Switch Definition
No. Symbol Comment
1 SEL_USB Switch on to enable USB interface
2 SEL_USB
3 SEL_RS232 Switch on to enable RS232 interface
4 SEL_RS232

CHARACTERISTICS

  • Absolute Maximum Rating
ITEM SYMBOL VALUE UNIT
Power Supply VCC (USB power source) 6 V
VCC(External power source) 12
Operating Temp. TOPR -10~+70 ℃
Storage Temp. TSTR -20~+85 ℃

  • Electrical Specification
ITEM SYMBOL MIN TYP MAX UNIT
Power Supply VCC (USB powered) 4.5 5 5.5 V
VCC (External supply) 7 9 12 V
Current dissipation IC 180 200 mA
Frequency FREQ 865

865~868

902~928

 928 MHz
RF power PRF 0 26 dBm
RF power Accuracy AP +/-1 dB
RF power Flatness FP +/-0.2 dB
Receiving Sensitivity SR -70 dBm
Size L×W×H 122.4*84*20 mm

Remark:

1. Specifications are subject to change, please pay attention to our latest version.

2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
